Turbines and blowers
Turbine and blowers are suitable for all those applications requiring considerably higher pressures than that which can be achieved using centrifugal fans. Also they can achieve vacuums. They are robust units used for versatile applications like water treatment, air knives, pneumatic conveying, extraction of fumes, aquaculture and process air. These blowers stand out for their durability, due to the robust aluminium design, which makes them highly resistant against corrosion.
Turbines and blowers
Side channel · Root rotary lobes

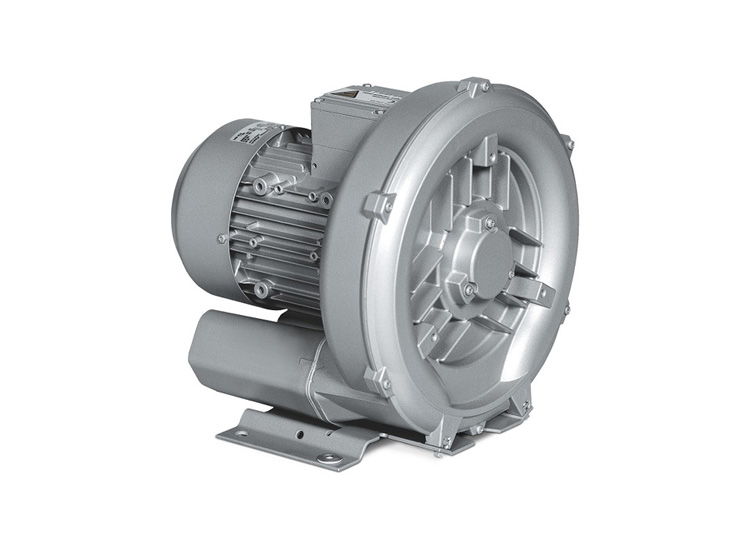

Side channel turbines
Features
-
No vibration, complete dynamic stability, pulsation free discharge
-
No internal lubrication is necessary
-
Air flow up to 11,000 m³/h
-
Pressure or vacuum: 0 to 0.65 bar
-
Low noise level with soundproof booth: 67 dB
Applications
-
Textile industry
-
Aquaculture, aquarium oxygenation
-
Smoke and fine dust extraction
-
Sewage treatment
-
Pneumatic transport
-
Bottling plants

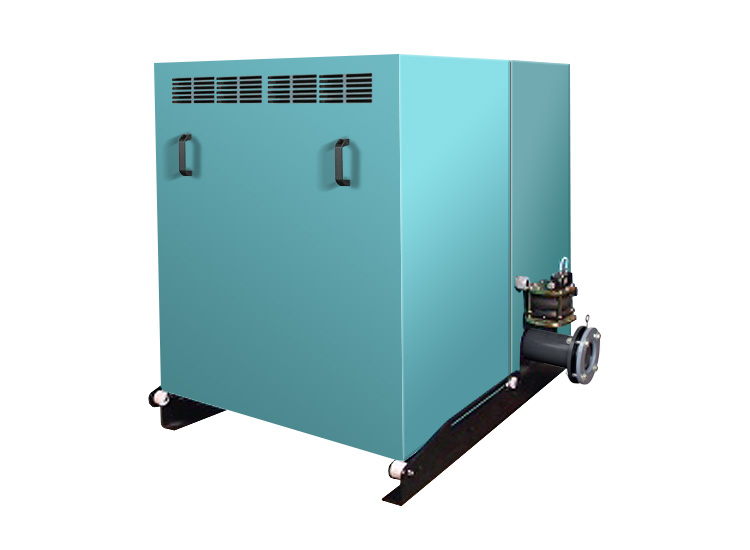

Roots rotary lobe blowers
Features
-
Compact cabins models, high reliability and long life
-
Bi-lobe or Tri-lobe with labyrinth seal system versions
-
Low noise level
-
Flow rates from 40 to 10,300 m³/h
-
Maximum pressure 1 bar
-
Roots prepared with filter, muffler, pressure-relief valve, check valve and vacuum gauge.
Applications
-
Plastic industry
-
Electronic industry
-
Textile industry
-
Food and environmental industries
-
Chemistry industry
-
Packaging and printing industries
