Flow meters
Electromagnetic, Parshall open channel, rotameters and oval gear flow meters for flow control and measurement in water and wastewater treatment facilities and any industry in general
Flow meter Electromagnetic line
Build your own flow meter

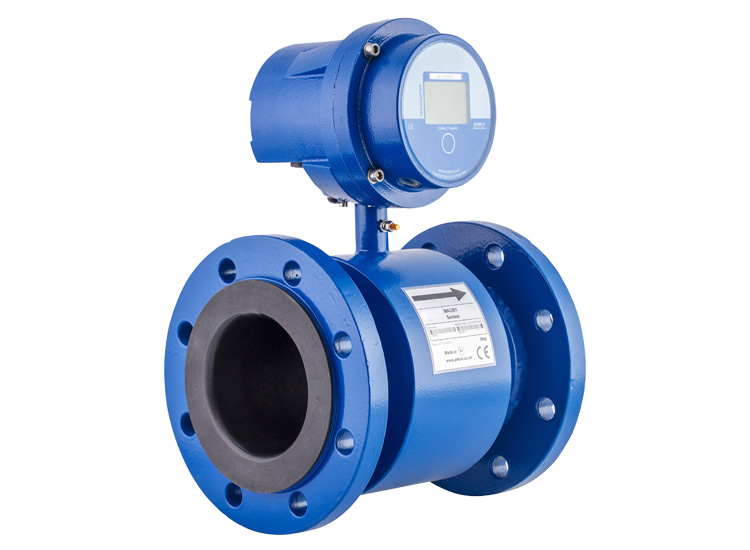

Battery powered
Features
-
Suitable for irrigation, remote applications and where power supply lines are difficult or expensive
-
Data logger 1,820 records, logging interval selectable
-
Accuracy of ±0.5% of actual value for sizes up to 150 mm and ±2% for bigger
-
Sizes from DN20 to DN600
-
Connections DIN, ANSI, JIS

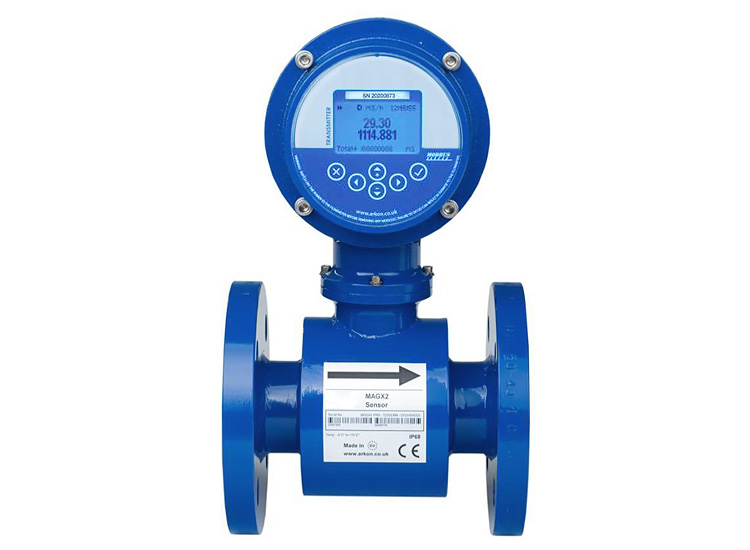

Modular design
Features
-
Modular design Plug & Play suitable from most basic to most advanced applications
-
Accuracy of ±0.2% of actual value
-
Sizes from DN100 to 1.000
-
Connections DIN, ANSI, JIS

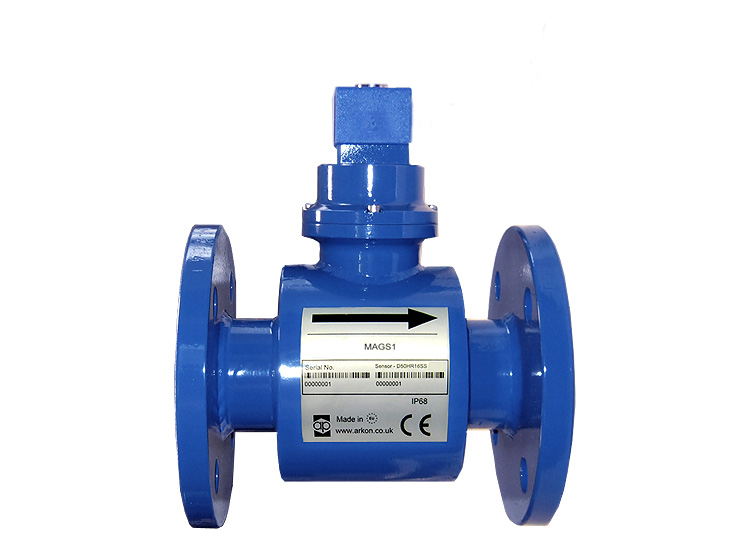

Stand-alone
Features
-
Stand-alone flowmeter which doesn’t need a transmitter and can be operated on its own
-
Suitable for applications where the flowmeter is connected to a PLC
-
Connections DIN, ANSI, JIS
-
Maximum nominal pressure PN 40/300 psi

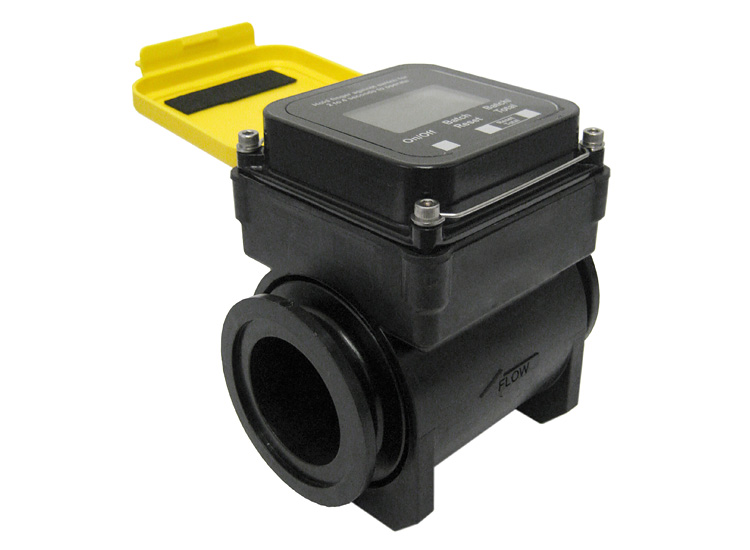

Agricultural
Features
-
User friendly low-cost plastic flowmeter for agricultural and multiple applications
-
Available in 3 sizes 25, 50 and 80 mm
-
Manifold clamping flanges connections compatible with fitting kits for DIN, BSP and NPT
-
Accuracy of ±1% from 10% to 100% of full scale range
-
Working pressure 150psi or 10.3 bar
Flow meters Industrial line
Measure and control any fluid
Open channel Parshall
Features
-
Ruggedly constructed, all-metal gauges
-
Particularly suitable for flow measurement in extreme conditions of temperature, pressure and chemical resistance
-
Possibility of flow recording (instantaneous, average, last hour, total)
-
Types: turbine, with pulse emitter, for cold water, for hot water, electromagnetic, ultrasonic, intrusive, flow meters, etc.
-
Accurate relationship between level and flow that flows through the Parshall canal. Max temperature 70° C
-
Sized according to DIN 19559 and BS 3680
Applications
-
Flow measurement in any industry
-
Wastewater treatment facilities
-
Pumping stations
-
Water treatment stations
-
Irrigation and/or drainage channels

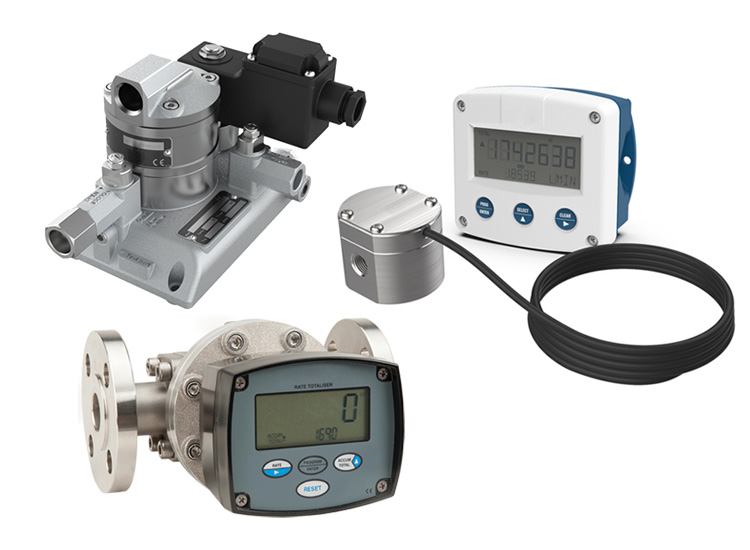

Oval gear
Features
-
FCS consumption kits for marine and land use
-
Small, medium and large capacity oval gear meters
-
Chemical and mechanical flowmeters
-
Diesel and electronic flowmeters
-
Compact AIM block additive injection manifolds
-
Sizes from 1/8” to 4”
-
Accuracies 1.0% or better
Applications
-
Accurate measuring fuel consumption of combustion engines
-
Automotive, aviation, mining, power, chemical, pharmaceutical, food, paint, petroleum industries and environmental applications
-
Petroleum products including oils and grease, fuels and fuel oils
-
Non-aromatic/non-halogenated organic chemicals, water-based liquids and Diesel exhaust fluid

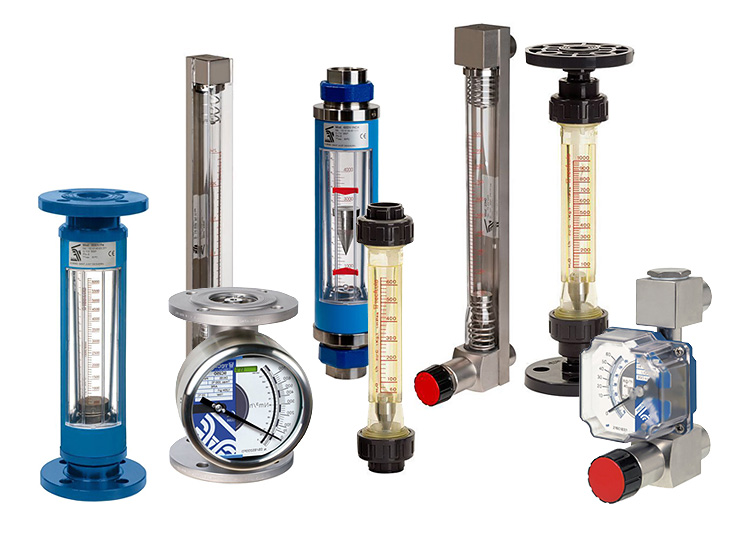

Rotameters
Features
-
Variable area flow meters for liquid, gas and steam flow rates
-
Metallic materials, stainless steel, plasticized iron, PVDF acrylic material or transparent technical plastics
-
Vertical or horizontal installations
-
Flow meters with float or manual regulation
-
Connections up to DN150
-
Measurement ranges:
From 0.1 L/h to 20,000 m³/h in H2O
From 0.4 NL/h to 300,000 Nm³/h in air
Applications
-
Water treatment, osmosis water purification, refrigeration and gas control
-
Control panels, pilot plants, control and measurement in machinery, gas burner control, industrial and process refrigeration, treatment furnaces
-
Cooling of hydraulic, lubrication and thermal oil circuits
-
Chemical, petrochemical, paper, pharmaceutical and food industry
-
Fire fighting installations, heating, saturated steam circuits, thermal and nuclear power plants
