Valves

A wide range of valves for the protection of drinking water networks, fluid regulation, non return and shut off, with sizes up to DN 4,000 in the naval, water treatment, industrial and energy sectors

Valves

Protection · regulation · non return · shut off

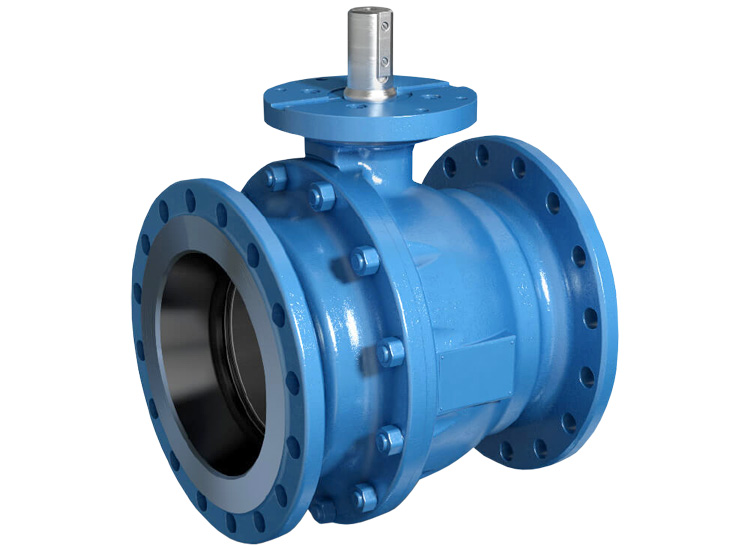

Ball


Features
  • Valves for process, naval and general services

  • 1, 2 or 3 piece valves

  • Connections: Flanged, Threaded, Socket Welding, Nipples BW, Wafer

  • Types: Fully welded, floating ball and trunnion mounted up to 2500LBS, segmented sphere, tefloned (Fully Lined), ON / OFF and Control

  • Ratings: PN10 / 100 and ANSI 150 / 4500LBS

  • Measurement range: 8 / 300mm and ¼ ”to 48”

  • Materials: Cast and forged steel, rolled steel, bronze, brass, thermoplastics or special alloys

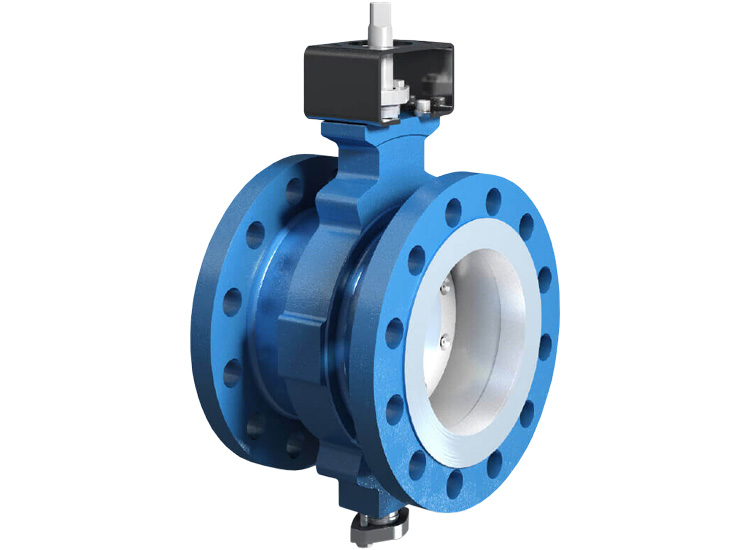

Butterfly


Features
  • Design: Concentric, double and triple eccentric

  • Ratings: DIN PN 10/100 and ANSI 150 up to 2500LBS

  • Size: Up to DN 4,000

  • Connections: Wafer, Flanged, Single Flange, Welding, Sectioned and Lug

  • Materials: Cast Iron, Duct Iron, Carbon and Stainless Steel, Tefloned (Fully Lined), Exotic Materials (Titanium, Monel, Inconel, Hastelloy)

  • Special executions: Cryogenic, gas, oxygen or chlorine services, High temperatures (up to 800ºC), Steam chamber and interior jacket

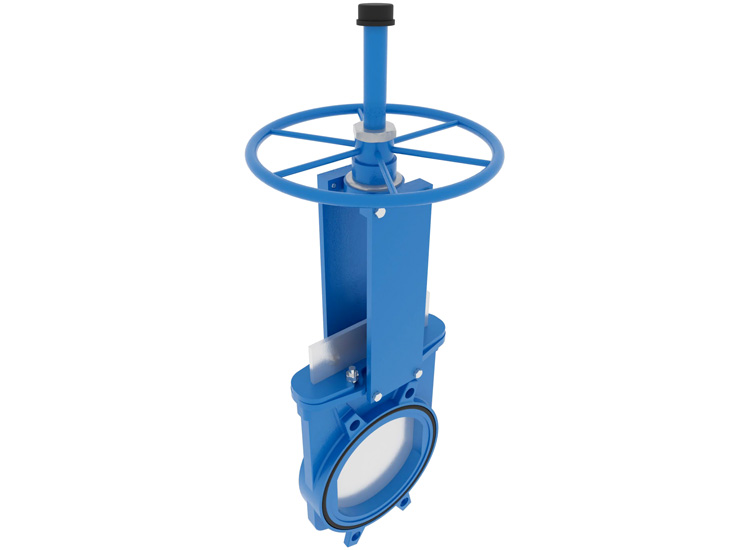

Knife gate


Features
  • Wafer type, AISI 316 equivalent body, NBR soft sealed knife gate valve

  • Threaded , flanged, between flanges and models with weld ends

  • Materials: Cast iron, cast stainless steel, and ductile iron knife gate valve models

  • Suitable for up to 10 bar, max. temperature 100 °C

  • Size: Up to DN 1,200

  • Standar flanges: DIN PN6/10/16/25, BS “D” and “E”, ANSI 150

  • Variations: EPDM, viton and silicone seal, rising stem or with actuator

Foot


Features
  • Integral check valves with basket

  • Bronze or cast iron body

  • Combination of sreened suction inlet and soft sealing disc check valve, raised face flanged

  • Connections: DIN flange according to EN 1092-3/B (DIN 2501)

  • Rating: PN4 - PN16

  • Size: Up to DN 500

  • Working pressure
    up to 10 Bar

  • Temperature range:
    -10 °C to +120 °C

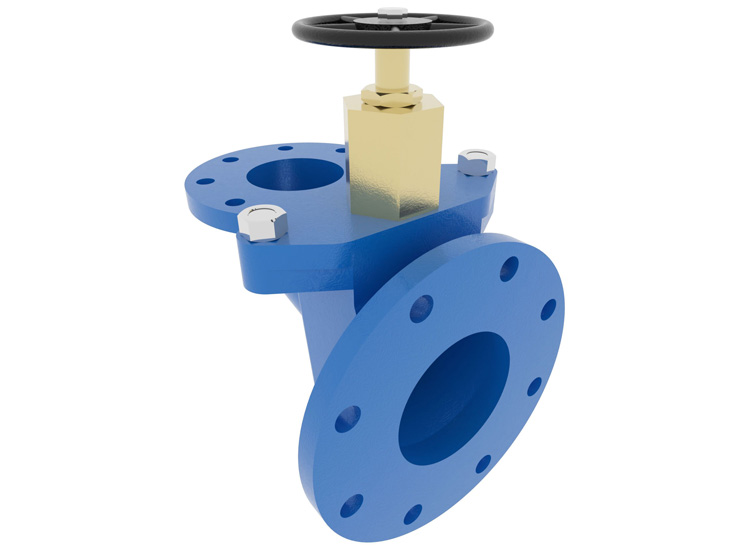

Storm, check & fire


Features
  • Storm valves with angle or straight type and flanged ends

  • Swing, dual plate, vertical, lift, piston or disc check valves with threaded or flanged ends, straight, wafer or short type

  • Fire hose valves available in straight, angle or oblique pattern with all types of couplings and metal to metal sealing or soft sealing

  • Sizes: Up to DN 1,200

  • Temperature range: -10°C to 180°C

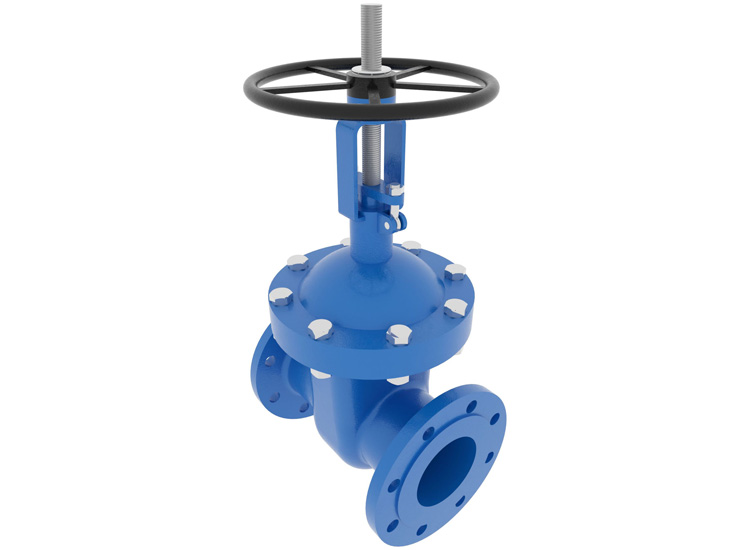

Gate


Features
  • Cast and Forged Valves

  • Full range of ratings: DIN up to PN 100 and ANSI 150 up to 4700LBS

  • Sizes: From ¼ "to 42"

  • Materials: Carbon, Alloy, Stainless Steel, Cast and Forged Monel, Bronze, Brass

  • Special executions: Pressure seal, Through Conduit, Bellows, Naval use, Cryogenic service, HF Alkylation, High pressures and temperatures

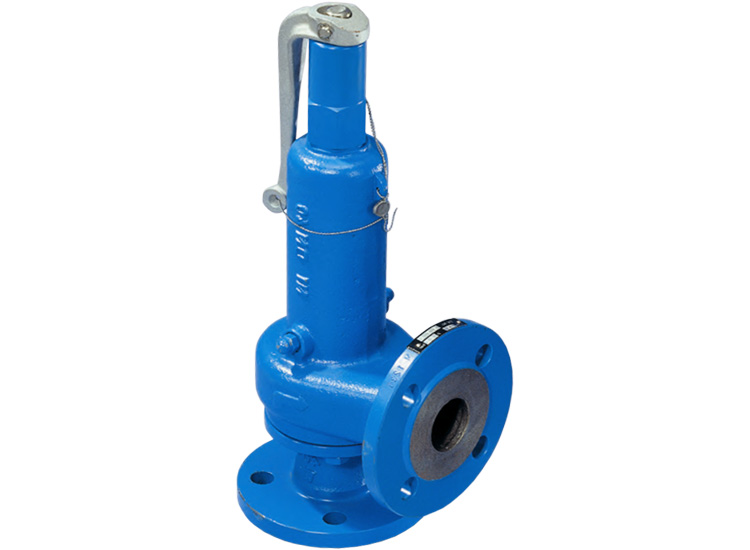

Safety & Control


Features
  • Air inlet valves with vacumm preventing, spring loaded and threaded end

  • Pressure reducing valves with threaded or flanged ends and straight Rg5 body

  • Overflow/pressure control valves with threaded ends and angled Rg5 body

  • Safety valves with flanged or threaded ends, and/or full lift, angled AISI 316 or nodular cast iron body

  • Relief valves with threaded ends, angled stainless steel or nodular cast iron body

  • Sizes: Up to DN 100

  • Temperature range: -10°C to 350°C

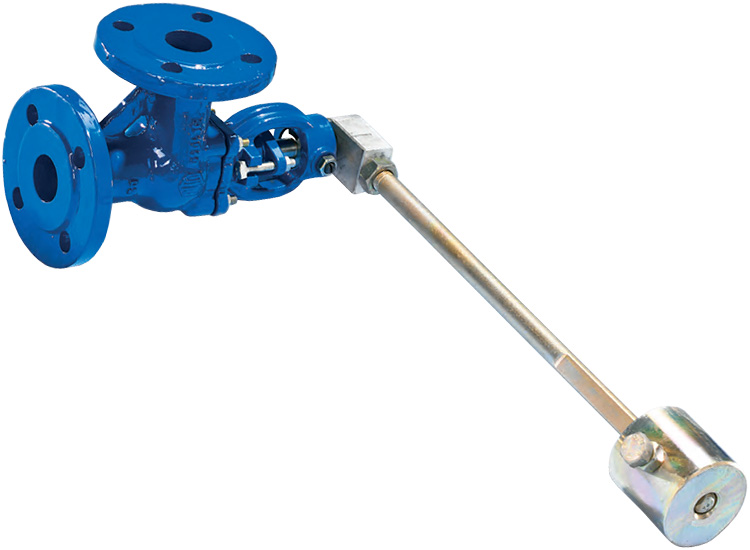

Quick & self closing


Features
  • Self-closing valves with spring or weight operation that ensure valves always return to the closed position, available in straight or angle pattern

  • Quick-closing valves operated by mechanical, pneumatic or hydraulic impulse in straight or angle

  • Float valves delivered with floating bouy which open or closes the valve depending on the level in a tank, in straight or angle pattern and with threaded or flanged connection

  • Sizes: Up to DN 200

  • Temperature range: -10°C to 180°C

Applications
  • Petrochemical and refining

  • Oil and gas

  • Chemicals and pharmaceuticals

  • Power generation

  • Solar thermal power

  • Potable and waste water

  • Desalination

  • Pulp and paper

  • Mining and cement

  • Metallurgical

  • Shipbuilding and marine industry

  • Biofuels and biomass

  • Food and beverage

  • Air conditioning

Actuators

Electric · pneumatic · hydraulic · manual

Odoo image and text block

A wide range of actuators including manual actuators, 90° electrical actuators, pneumatic actuators (90°, 120°, 180°), hydraulic, actuators for diaphragm valves, butterfly, solenoid and ball valves as well as position indicators, silencers and switch boxes

Features
  • On/off duty multiturn, quarter turn, on gearbox or with servomotor electric actuators

  • Rack pinion double or single acting pneumatic actuators

  • Double or single acting type hydraulic actuators

  • Manual actuators by means of handwheels and trigger levers

Applications
  • General Industry

  • Chemicals

  • Water

  • Oil & Gas

  • Power

Specialists in

pumping equipment , water treatment and sewage purification

Feel free to contact and let us know what we can do for you
