Magnetic drive pumps

Magnetic drive pumps have a particular sealless design that makes them hermetic, with only the suction and discharge connections, without leakege or emissions. The external magnet placed on the drive shaft transmits the motion to the internal magnet connected to the impeller which rotates and moves the fluid through the pu mp. This pumps are suitable to pump corrosive and dangerous liquids thanks to the high chemical resistance materials

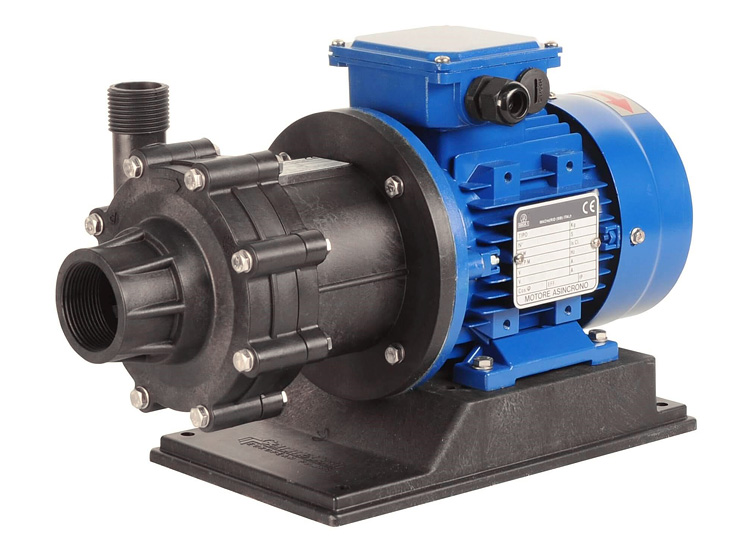

Magnetic drive pump

Several materials for diferent aggresive liquids

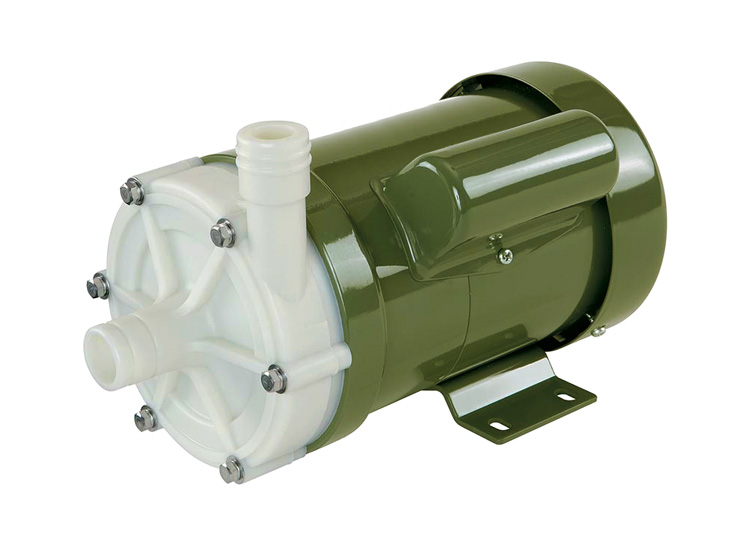

Low flow rates in polypropylene

Features
  • Monobloc magnetic pumps without packing nor mechanical seal

  • Polypropylene (PP) pump casing

  • Flow rates up to 6.5 m³/h

  • Heads up to 8.5 m

  • Max. temperature 70º C

  • Viscosities up to 30 cPs

Applications
  • Aggressive or corrosive liquids

  • Weak acids

  • Alkalis

  • Surface treatment

  • Vending machines

  • Aquariums

  • Laboratory facilities

  • Photographic development solutions

  • Salt water


Medium flow rates in plastic or SS

Features
  • Monobloc magnetic pumps

  • Polypropylene (PP), polyvinylidene fluoride (PVDF) or Stainless Steel (SS) casings

  • Flow rates up to 44 m³/h

  • Heads up to 30 m

  • Max. temperature 90º C

  • Viscosities up to 45 cPs

Applications
  • Aggressive and clean liquids

  • Acids

  • Alkalis

  • Solvents

  • Corrosive liquids

  • Filtration systems for coatings industries

  • Bleach factories

  • Toxic liquids

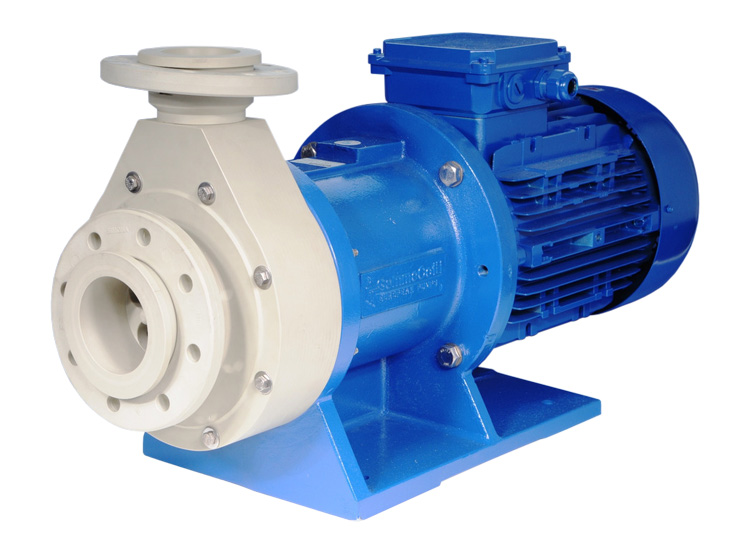

High flow rates in various materials

Features
  • Monobloc magnetic pumps without mechanical seal

  • Polypropylene (PP) or polyvinylidene fluoride (PVDF) casings

  • Flow rates up to 130 m³/h

  • Heads up to 48 m

  • Max. temperature 90º C

  • Viscosities up to 100 cPs

Applications
  • High corrosive liquids

  • Toxic, noxious and carcinogenic liquids

  • Acids

  • Alkalis

  • Hydrocarbons

  • Radioactive liquids

  • Explosive liquids

  • Chemical liquid products

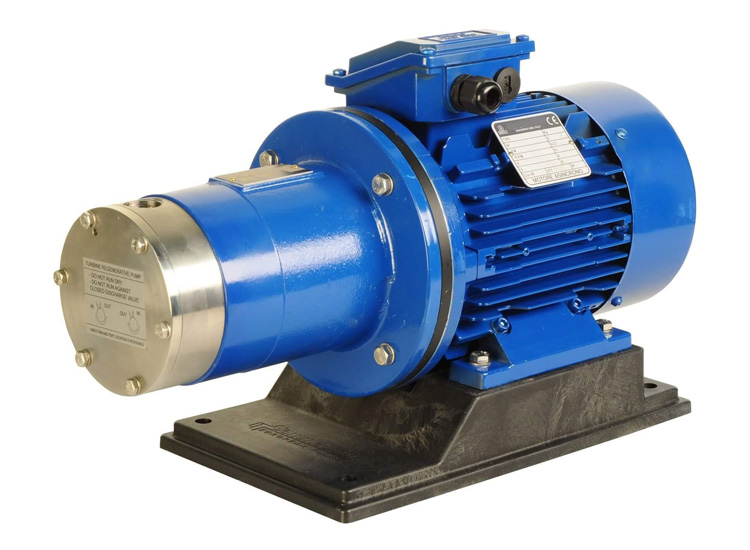

High accuracy rotary

Features
  • Rotary pumps with magnetic drive

  • AISI 316 casings

  • High magnetic torque

  • Pressures up to 25 bar

  • Flow rates up to 7 m³/h

  • Heads up to 80 m

  • Max. temperature 160º C

  • Viscosities up to 100 cPs

Applications
  • Suitable for small flow rates and high pressure

  • Pumping liquids with gas presence up to 20%, such as liquefied gas

  • Clean chemicals and liquids at high pressures and/or temperatures such as oils, alcohols, liquid fats, glycol, solvents, etc.
