Sanitary
pumps

Hygienic pumps in electropolished stainless steel for the food and sanitary industry. Designed with food safety in mind, they offer optimal cleanability. SANDE Y DÍAZ is able to provide not only the pump but also the appropriate process system for your food application, including CIP cleaning systems, drum discharge or mixing equipment. Browse our offering of centrifugal, rotary lobe, diaphragm, twin screw, or peristaltic pumps among others

Sanitary pumps

T he hygienic version of our process pumps

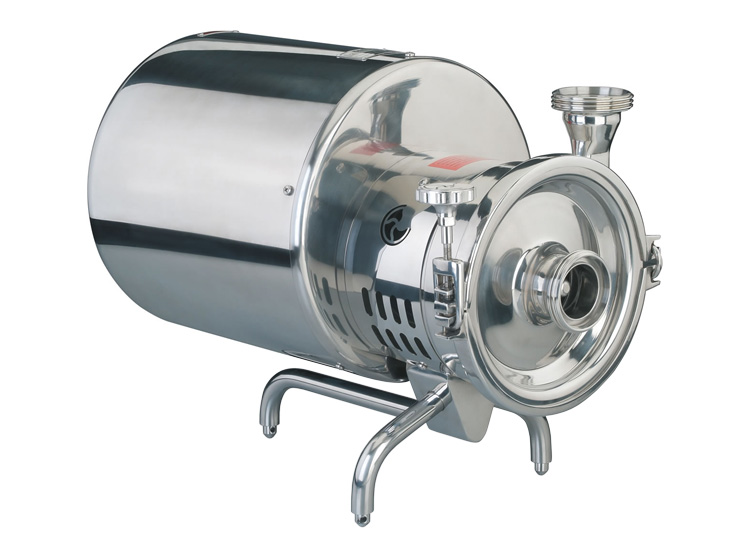

  Centrifugal pump

Features
  • Centrifugal, multistage or self-priming models

  • In electropolished stainless steel

  • Flow rates up to 1,000 m³/h

  • Pressures up to 16 bar

  • Temperature range from   -25 °C to +180 °C

  • Viscosities up to 500 cP

Applications
  • Food, dairy, oenological and beverage industries

  • Ultra filtration processes

  • Liquids containing air or gas, mixtures of liquids and solids or products with different viscosities

  • Alimentary oils, creams, syrups or juices

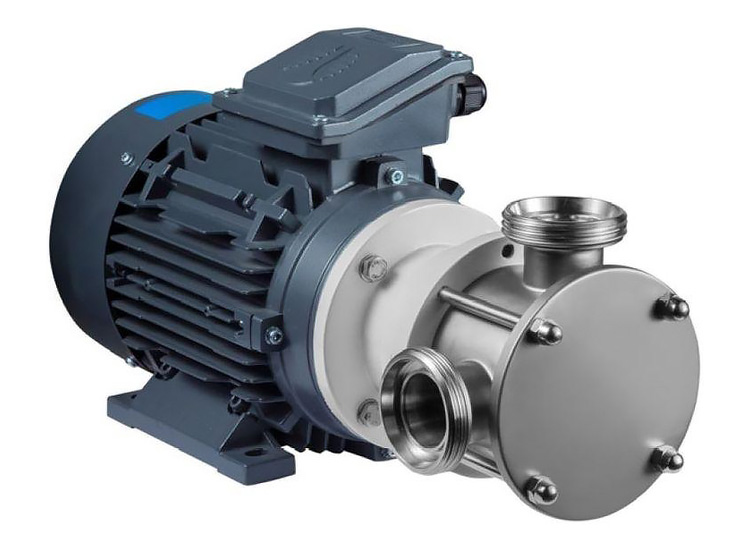

Flexible impeller pump

Features
  • Reversible or selfpriming

  • Monobloc or based on

  • In stainless steel AISI 316

  • Flow rates up to 60 m³/h

  • Pressures up to 4 bar

  • Temp.: from -15 to +130 °C

  • Viscosities up to 20,000 cP

Applications
  • Dairy products, natual oil, wine and beverages pumping

  • High viscosity products such as jams, syrups and liquids that contain solid particles or gases (carbonated drinks)

  • Clear alimentary liquids

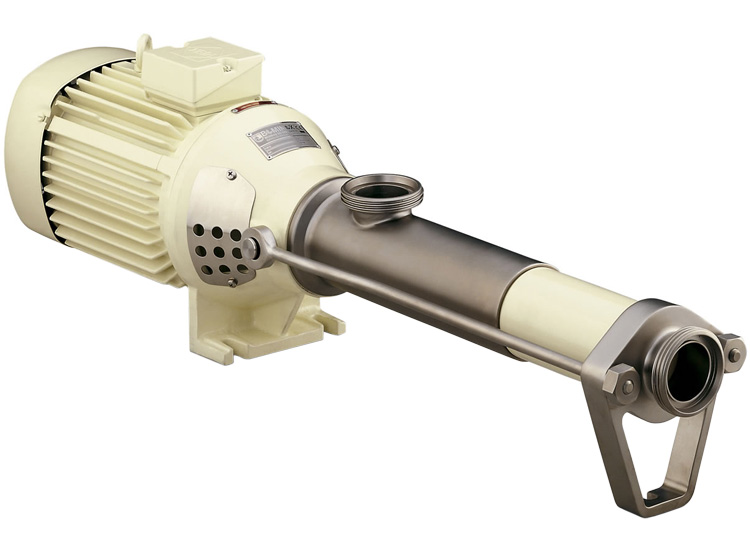

Helical pump

Features
  • Reversible or self-priming

  • With or without suction hopper, endless bar or with floating stator

  • Flow rates from 2 to 60 m³/h

  • Pressures up to 24 bar

  • Viscosities up to 250,000 cP

Applications
  • Light and delicate food products

  • Fluids that require special care

  • High viscosity alimentary products, with large soft solids and liquids with suspended particles

  • Grape harvesting

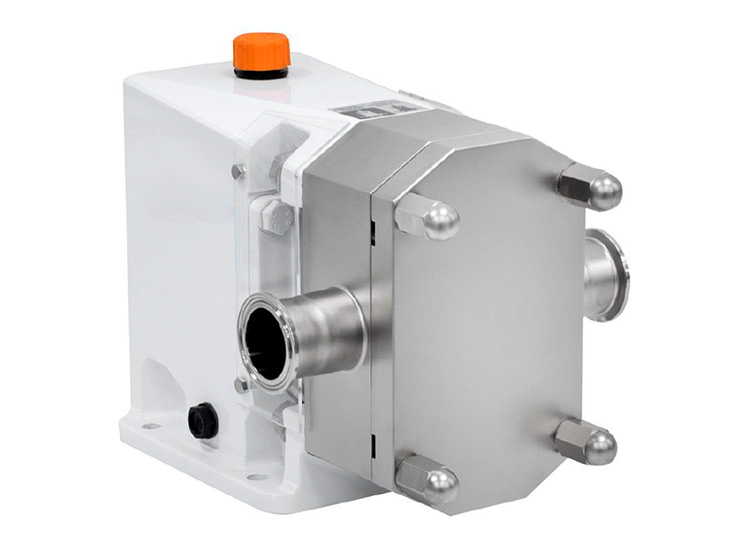

Lobe pump

Features
  • Positive displacement lobe pumps

  • In stainless steel AISI 316L

  • Flow rates up to 160 m³/h

  • Pressures up to 16 bar

  • Temperatures between    -10 and +165 °C

  • Viscosities up to 1,000,000 cP

Applications
  • Dairy, food, beverage or oenological industries

  • Cosmetic and pharmaceutical industries

  • Fine chemical industries

  • Products with delicate solids

  • Musts, yeasts and brewery masses

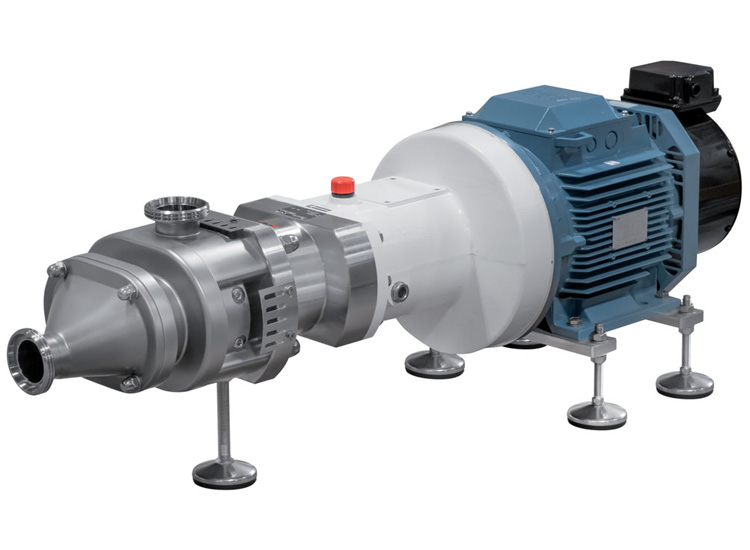

Twin screw pump

Features
  • High suction lift capability

  • In stainless steel AISI 316

  • Flow rates up to 87 m³/h

  • Pressures up to 18 bar

  • Temperatures between    -20 and +140 °C

Applications
  • Ideal pump for handling shear sensitive fluids

  • Pumping both high and low viscosity liquids

  • Food, dairy, beverage and cosmetic sectors

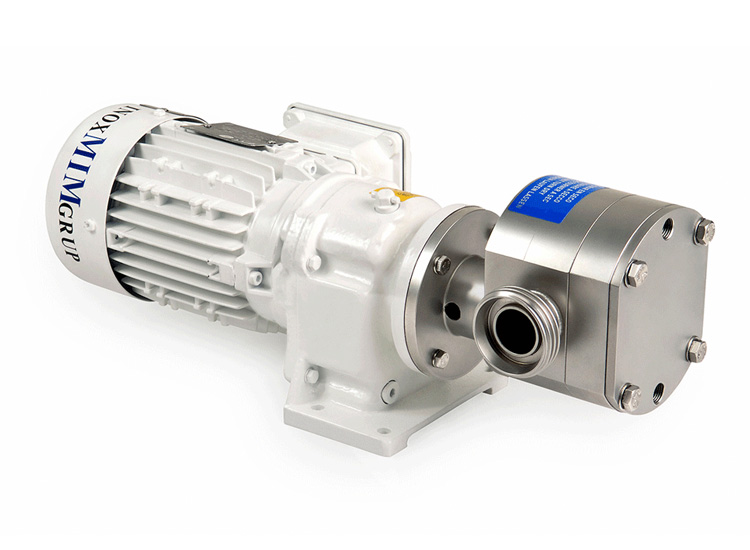

Gear pump

Features
  • High performance and capability to work with high temperature

  • In stainless steel AISI 316

  • Flow rates up to 120 m³/h

  • Pressures up to 2 bar

Applications
  • Dosage of anchovy paste, chocolates, creams, oils, fats and other products

  • Pumping of oils, fats, molasses, starch, cellulose, creams, etc.

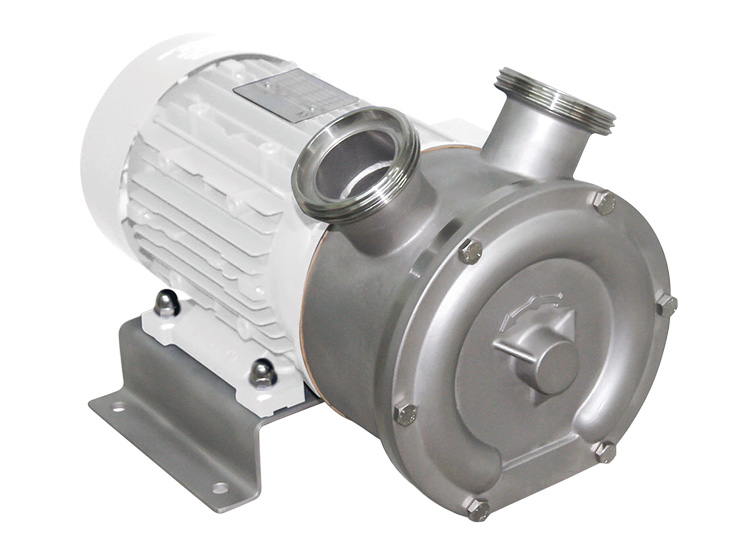

Liquid ring pump

Features
  • Self-priming and reversible pump

  • In stainless steel AISI 316

  • Hygienic seal

  • Flow rates up to 30 m³/h

  • Pressures up to 4 bar

Applications
  • Transferring and handling clean fluids and fluids without any suspended solid particles

  • Wine and oil industry

  • Dairy products industry

  • Acids, detergents, inks...

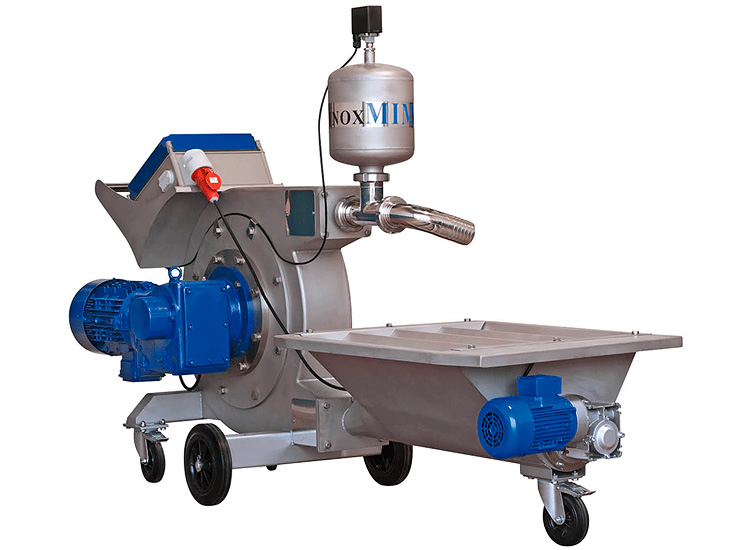

Peristaltic pump

Features
  • AISI 304 stainless steel (no contact with the liquid)

  • Flow rates up to 52 m³/h

  • Pressures up to 15 bar

  • Temperatures between    -20 and +70 °C

Applications
  • All kind of products without damaging them, since there is no contact between the mechanical parts and the fluid

  • Liquids with semisolid products
