Selfpriming centrifugal pumps

Centrifugal selfpriming pumps are the ideal choice for water and light fuels when suction conditions are difficult. When a pump is situated above the liquid level, such as on top of a tank, the pump needs to be selfpriming to draw the liquid in to the inlet

Azcue Pump  CA Series

Selfpriming centrifugal pump

Azcue Pump CA Series

The CA is a close coupled centrifugal pump that is selfpriming and is designed to handle a myriad of liquids. It has back pull out design, flexible executions, a heavy ball bearing to increase reliability and selfpriming that does not require a foot suction valve

Features
  • Flows up to 300 m³/h

  • Heavy radial ball bearing, lubricated by grease

  • Possibility of double direction of rotation, by mounting interchangeable impellers and diffusers

  • Heads up to 105 m

Applications
  • Marine applications such as ballast, bilge, fire fighting, engine cooling, general services

  • Industrial applications such as transfer, circulation, low pressure feeding of all kind of liquids
  • Domestic applications such as draining of garages, channels,
    swimming pool and pond.

  • Irrigating water supply, grey and dirty waters pumping

The CA series pumps can be supplied in bare shaft execution, mounted in common base plate with pump-motor flexible coupling, in monobloc execution, with petrol or diesel engine, electric motor, hydraulic, pneumatic or driven by clutch and pulley or electromagnetic clutch.

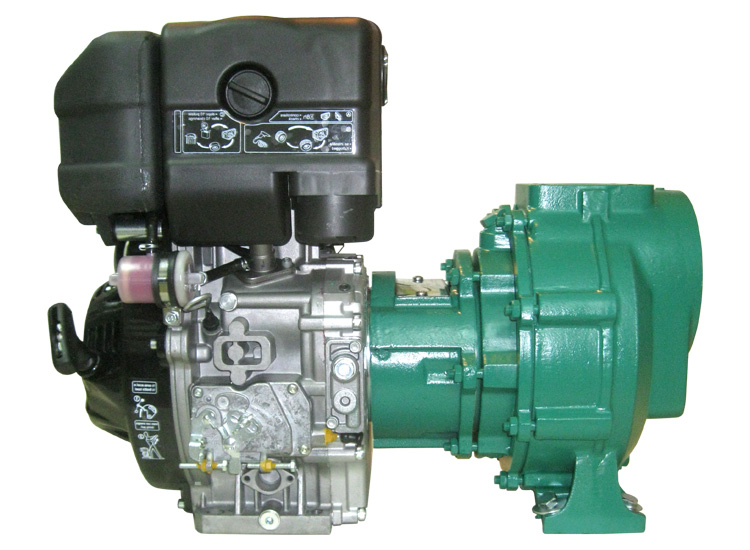

Azcue Pump CA Series Engine


Engine

Types

  • Petrol motor

  • Diesel

  • Hydraulic

  • Pneumatic

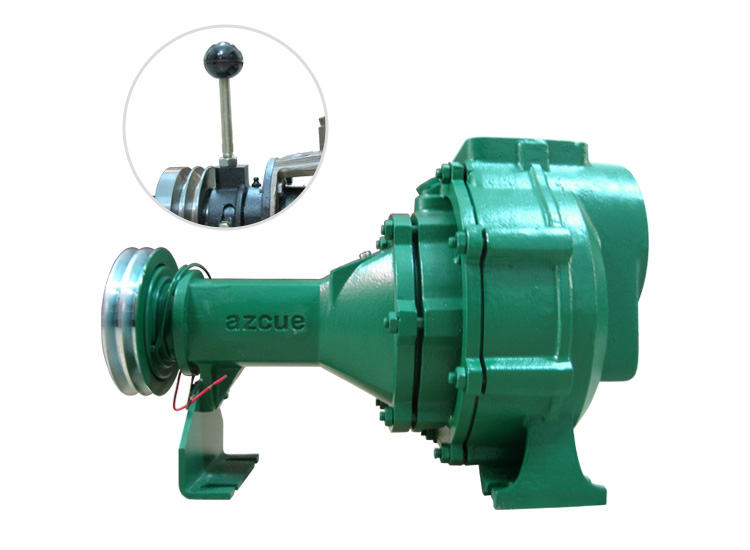

Azcue Pump CA Series Clutch


Clutch

Types

  • Mechanical clutch

  • Electromagnetic clutch

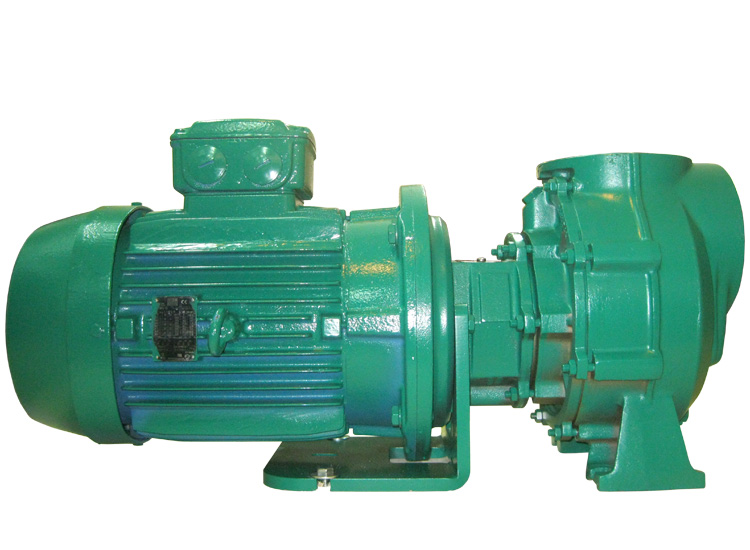

Azcue Pump CA Series Monobloc


Monobloc

Types

  • Electric motor

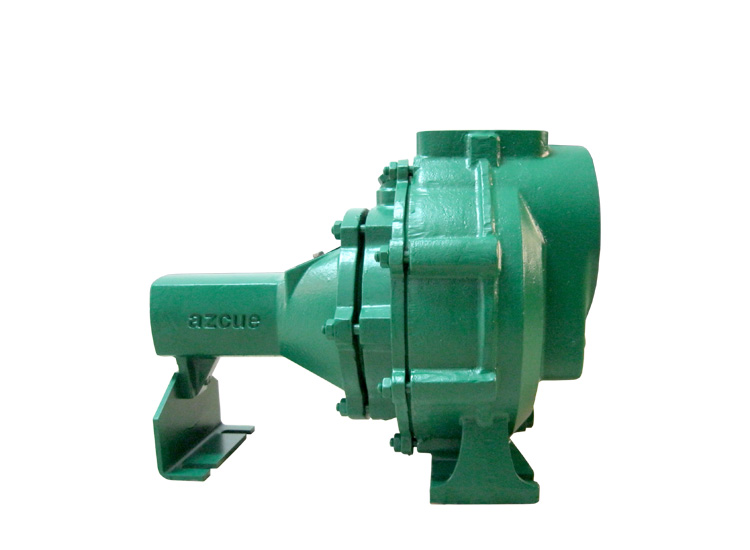

Azcue Pump CA Series Bare shaft


Bare shaft

Types
  • Bare shaft

  • Base plate with flexible coupling to electric motor
