Housings for
filter cartridges
Cartridge filters are specially manufactured for the filtration of water, beverages, wine and non-hazardous liquids. Available in a wide range of sizes and connections, these housings are used in all types of process industries. The perfect combination of containers and filtering cartridges allow to satisfy any flow rate, efficiency and contaminant removal
Housings
Single and multi cartridge

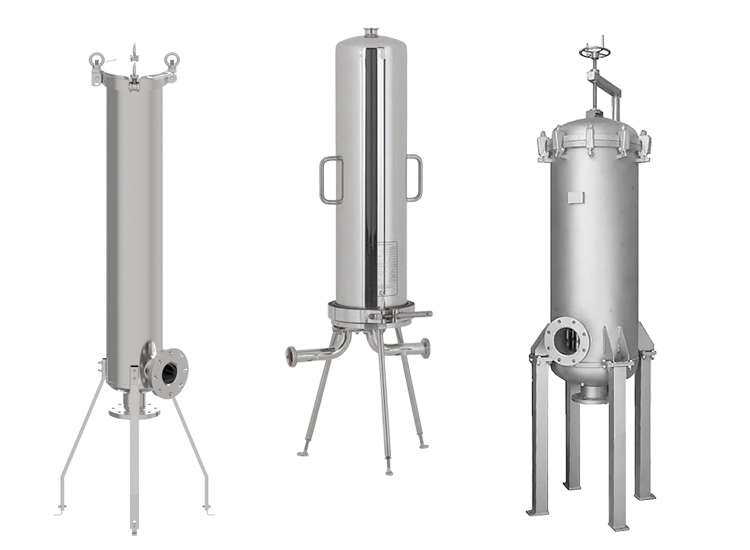

Stainless Steel
Features
-
Stainless Steel AISI 316L
-
Cartridges heights 9”¾, 10”, 20", 30" or 40"
-
No. cartridges up to 90 pcs.
-
Maximum pressure 10 bar
-
Max. temperature 80 °C

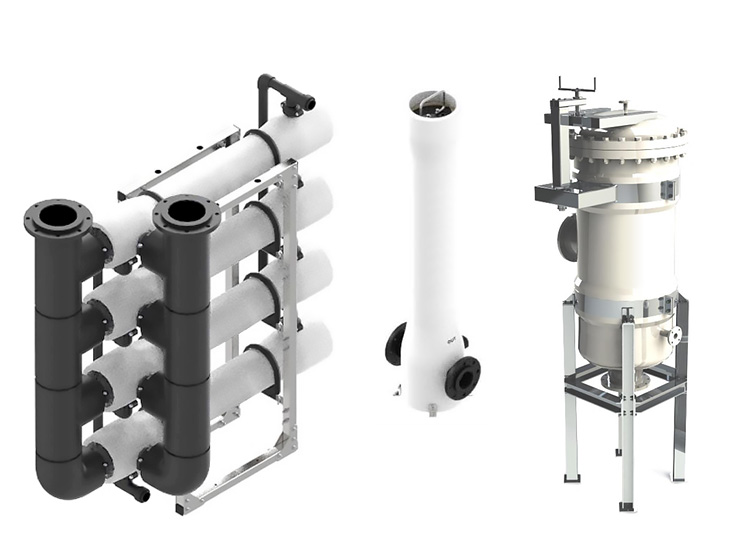

Fiberglass FRP
Features
-
Fiberglass (FRP) housings
-
Cartridges heights 20"
-
No. cartridges up to 57 pcs.
-
Maximum pressure 10 bar
-
Max. temperature 50 °C

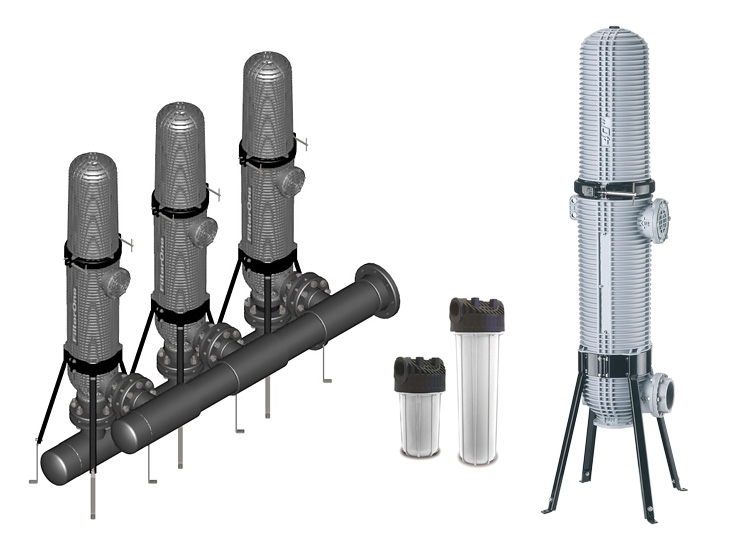

Polypropylene PP
Features
-
Polypropylene PP
-
Cartridges heights 9”¾, 20" and 40"
-
No. cartridges up to 4 pcs.
-
Maximum pressure 8 bar
-
Max. temperature 50 °

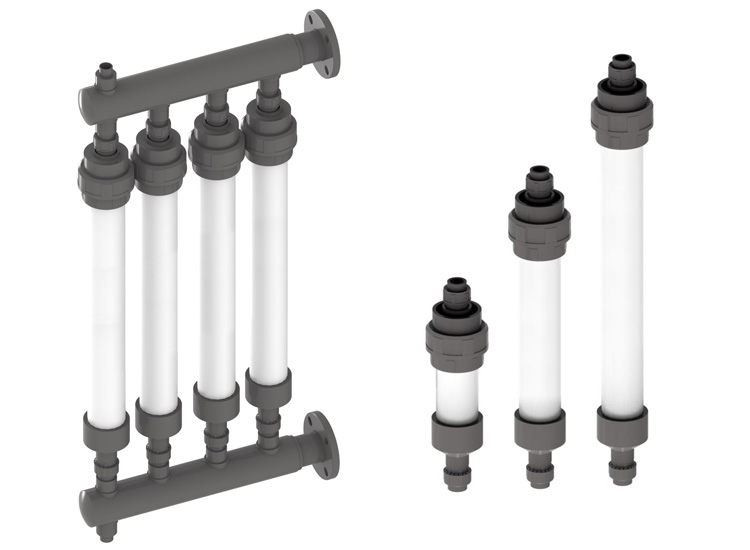

PVC
Features
-
PVC housings
-
Cartridges heights 10”, 20" and 30"
-
No. cartridges up to 10 u.
-
Maximum pressure 8 bar
-
Max. temperature 50 °C

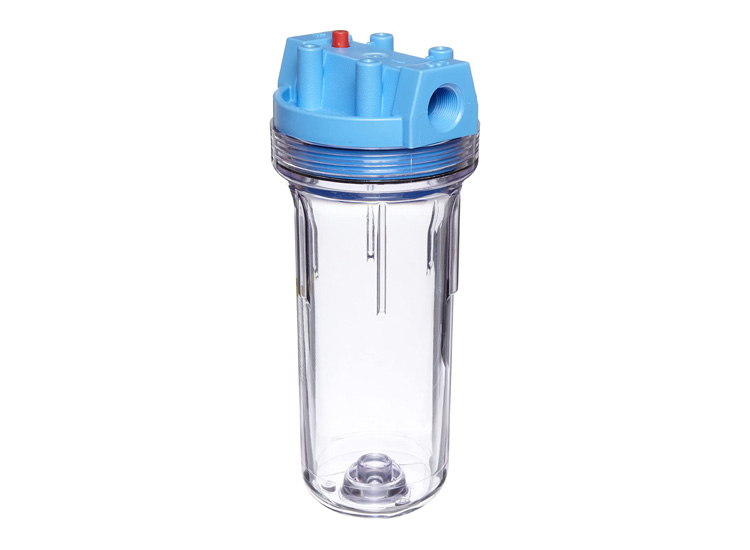

PP-SAN
Features
-
Polypropilene PP-SAN
-
Cartr. heights 9” ¾ and 20"
-
Number of cartridges 1
-
Maximum pressure 8 bar
-
Max. temperature 50 °C
-
Endcaps Types: Standard

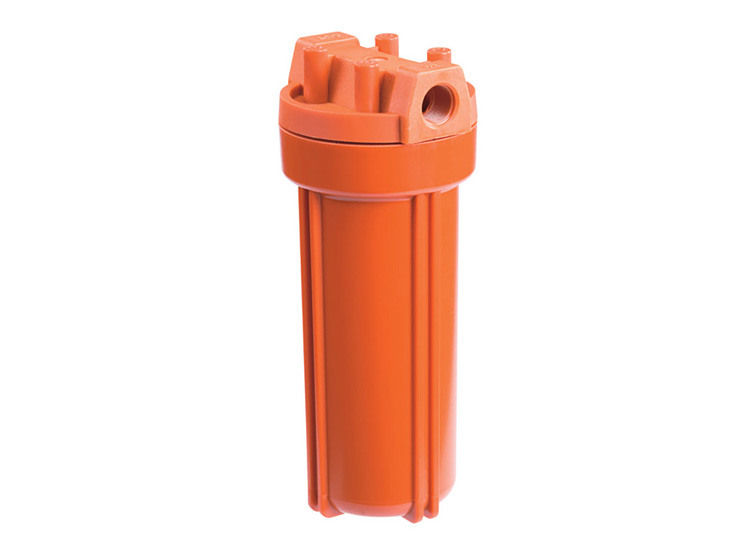

High temperature
Features
-
Glass-reinforced nylon
-
Cartr. heights 10" and 20"
-
Number of cartridges 1
-
Maximum pressure 8.6 bar
-
Max. temperature 75 °C
-
Endcaps Types: Standard

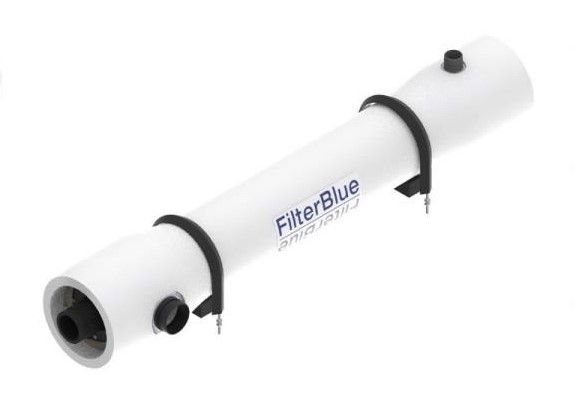

Filterblue
Features
-
Fiberglas housing for big flows
-
Cartridges 20"
-
No. cartridges up to 12 pcs
-
Max working pressure 15 bar
-
Max temperature 50 °C
-
Endcaps Types: BL

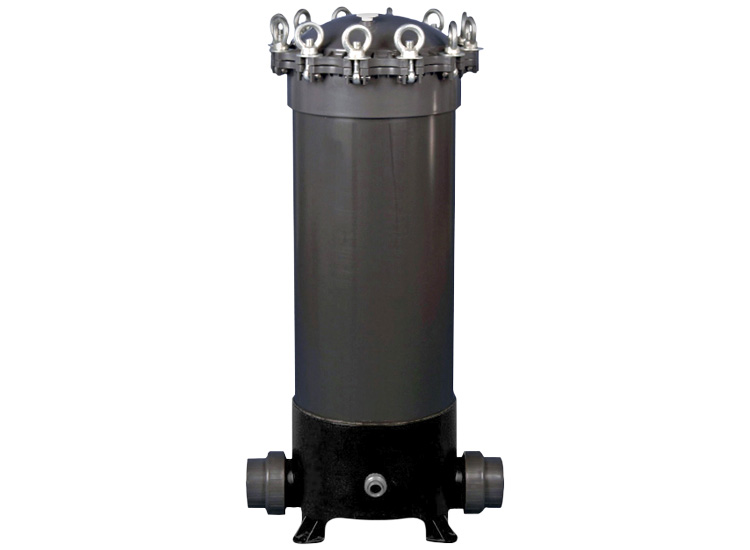

PVC multicartridge
Features
-
PVC housings, perfect for sea water
-
Cartridges: 20" or 40"
-
Number of cartridges 5 or 9 pcs.
-
Max working pressure 6 bar
-
Max temperature 40 °C
Applications
-
Water and sea water filtration
-
Almost any type of water treatment, be it domestic, industrial or commercial
-
Suitable for water treatment plants for drinking and industrial waters
-
Food, farmaceutical, chemical and petrochemical sectors
Cartridge types
-
Depth filtration cartridges in polypropylene
-
Pleated filtration cartridges in polypropylene
-
Washable filtration cartridges, stainless steel or nylon net
-
Carbon cartridges in activated carbon block or granular activated carbon
