Ultraviolet disinfection

Efficient, chemical-free and environmental friendly ultraviolet disinfection systems, in one lamp or multilamp configurations, in stainless steel for general purposes and in polypropylene for corrosive environments, for aquaculture, industrial fluids, municipal and recreational water, and other industries. Besides standard UV disinfection, we also delivers Advanced Oxidation Process for treatment of groundwater pesticides, and Total Organic Carbon reduction solutions for complex applications

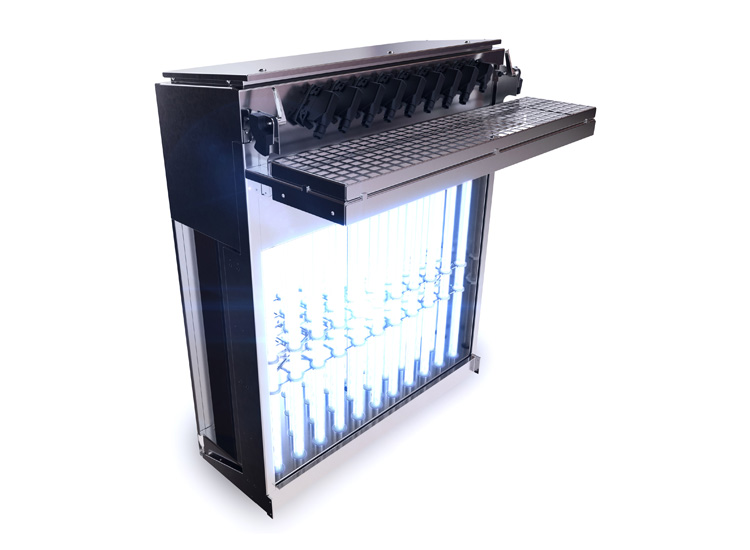

Ultraviolet disinfection Open channel

Polypropylene and SS 316L systems

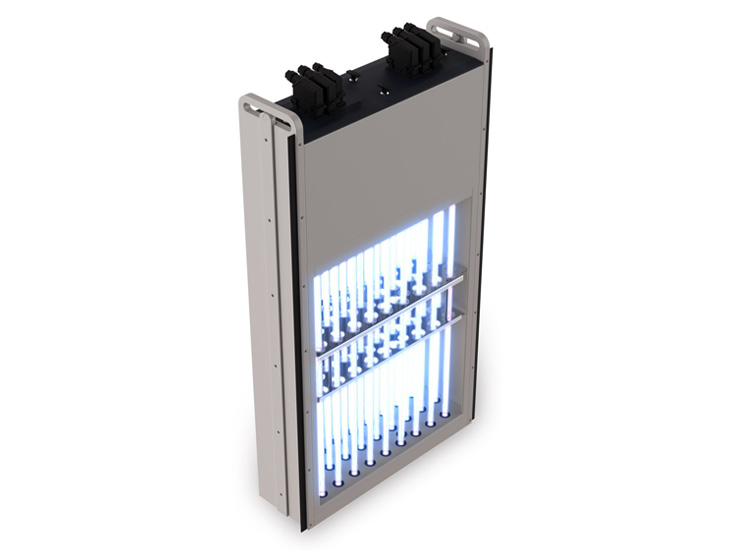

Polypropylene (PP)

Features
  • For saline and highly corrosive environments

  • 16000-hour lamp lifetime

  • Vertical lamp configuration

  • Flow rates up to 8,000 m³/h

  • Ultraviolet transmission 20 – 100%

  • Automated quartz sleeve wiping system as an option

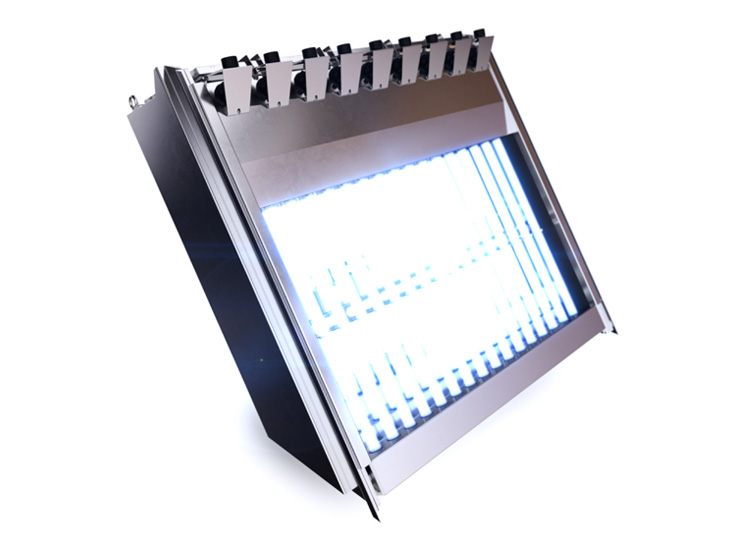

Inclined

Features
  • Ideal for up to 30% lower water levels and existing infrastructure

  • 16000-hour lamp lifetime

  • Inclined lamp configuration

  • Flow rates up to 16,000 m³/h

  • Ultraviolet transmission 20 – 100%

  • Automated quartz sleeve wiping system as an option

Stainless steel

Features
  • High-grade electropolished stainless-steel 316L material

  • 16000-hour lamp lifetime

  • Vertical lamp configuration

  • Flow rates up to 16,000 m³/h

  • Ultraviolet transmission 20 – 100%

  • Automated quartz sleeve wiping system as an option

Applications
  • Recirculated aquaculture systems

  • S tormwater overflow

  • Flow-through intensive aquaculture applications

  • Municipal and industrial wastewater

Ultraviolet disinfection Closed vessel

Polypropylene, SS 316L and polyethylene systems

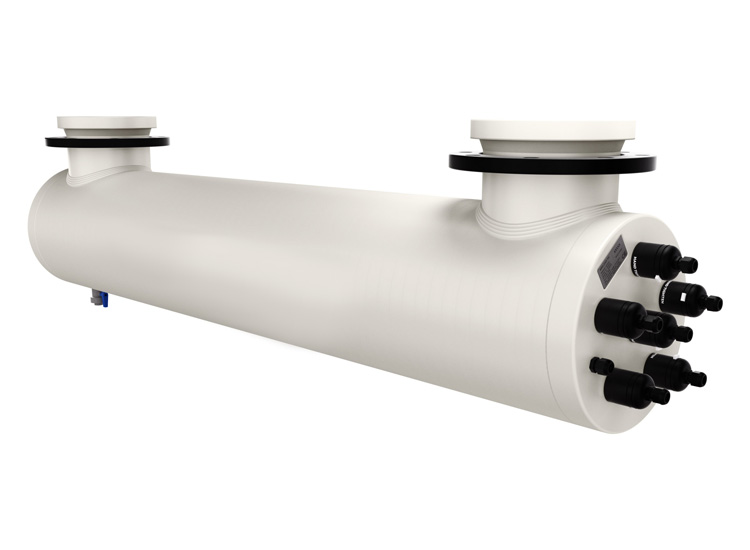

Non-corrosive PP

Features
  • 16000-hour lamp lifetime

  • Reactors in Inline, U, L or Z-shape

  • Long lifetime materials to highly corrosive environments

  • Connections up to DN500

  • Pressure rating Max. 10 bar

  • Flow rates up to 6,000 m³/h

  • UV transmission 60 – 100%

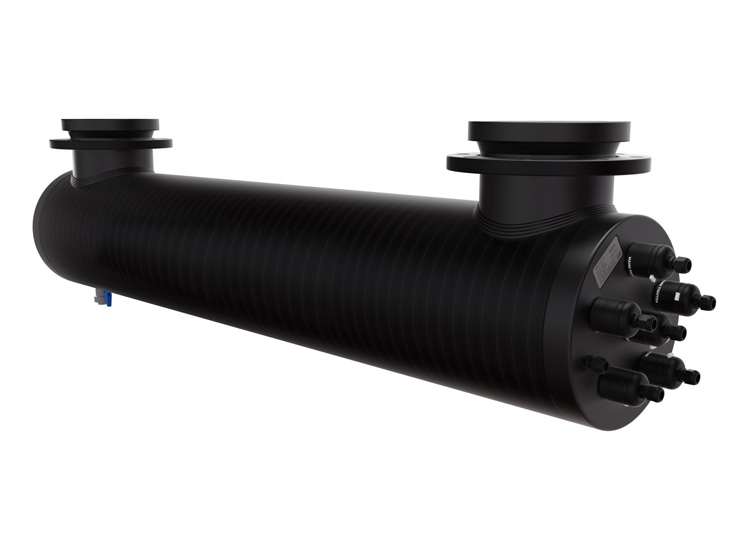

Non-corrosive PEHD

Features
  • Complete salts, oils, and acids resilience

  • 16000-hour lamp lifetime

  • High level of customization available

  • Extremely long lifetime

  • Pressure rating Max. 10 bar

  • Flow rates up to 3,000 m³/h

  • UV transmission 60 – 100%

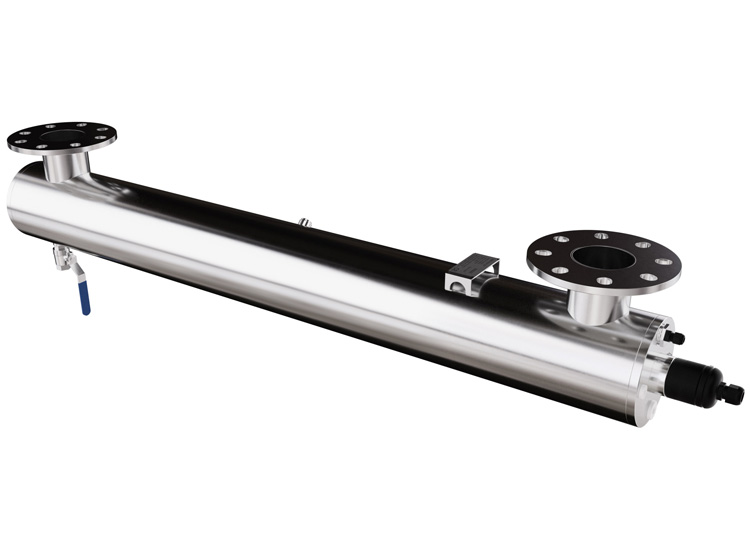

TOC destruction

Features
  • TOC levels reduced down < 1 ppb

  • Vacuums lamps emitting UV light has more energy and promotes the formation of OH- radicals

  • 12000-hour lamp lifetime

  • Electropolished SS 316L

  • Pressure rating Max. 16 bar

  • Flow rates up to 500 m³/h

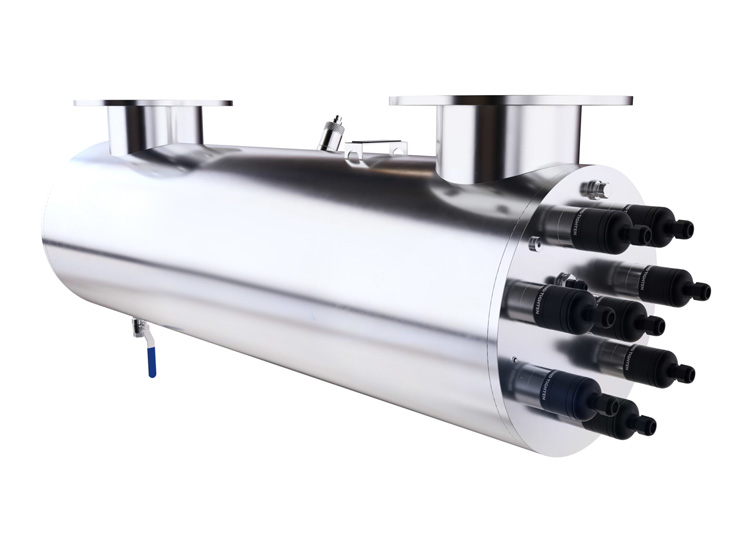

Stainless steel

Features
  • 16000-hour lamp lifetime

  • UV intensity monitoring based on ÖNORM certified sensor

  • 20% energy savings due to internal reflection

  • Pressure rating Max. 16 bar

  • Flow rates up to 6,000 m³/h

  • UV transmission 70 – 100%

  • Automated quartz sleeve wiping system as an option

Applications
  • Recirculated aquaculture systems

  • Shrimp and prawn farming

  • Aquariums and zoos

  • Food and beverage

  • Oil and gas

  • Cooling tower water

  • Drinking water

  • Industrial wastewater

  • Microelectronics and semiconductors

  • Pharmaceutical

  • Groundwater pesticides

  • Stormwater overflow

Ultraviolet disinfection Medium pressure

Maximum power with minimum footprint

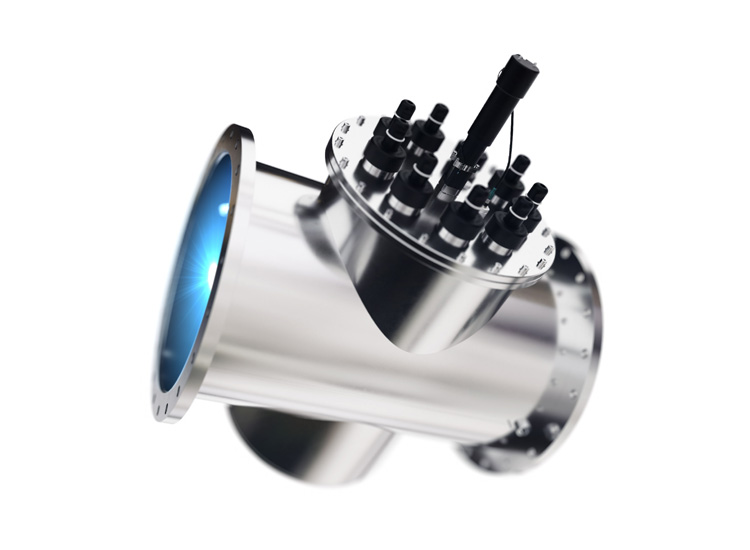

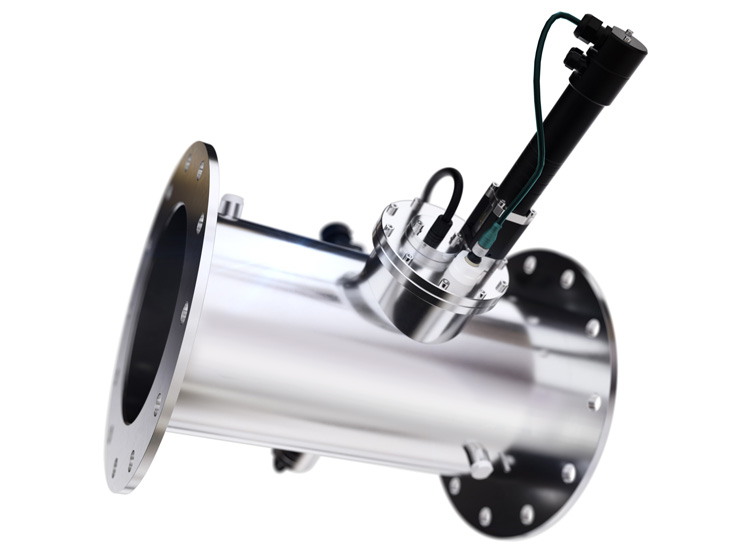

Dechlorination

Features
  • Medium pressure dechlorination systems in electropolished SS 316L or super duplex

  • Very low head loss

  • UV lamps scientifically optimized for pools

  • Pressure rating Max. 10 bar

  • Flow rates up to 2,000 m³/h

  • Ultraviolet transmission 80 – 100%

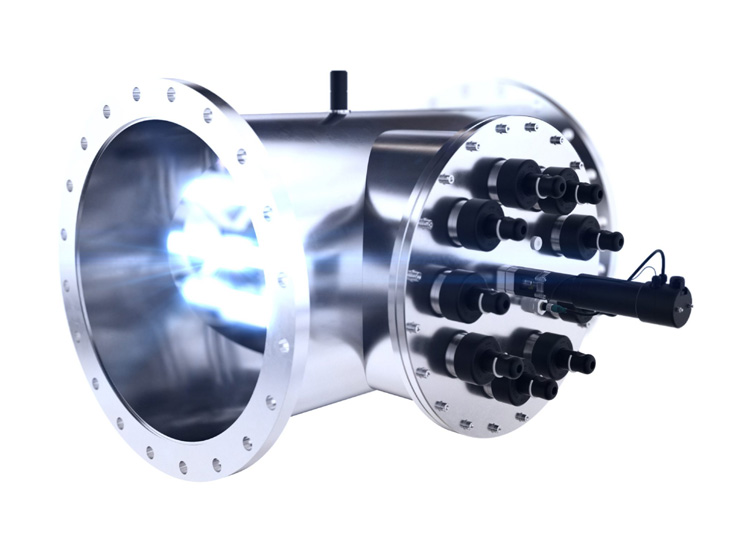

Advance oxidation

Features
  • Processes with the purpose of degrading persistent and toxic chemical compounds

  • Experimental validation of process efficiency as input to design

  • ÖNORM certified, 360 degrees

  • Pressure rating Max. 16 bar

  • Flow rates up to 6,000 m³/h

  • Ultraviolet transmission 60 – 100%

High intensity

Features
  • High flow applications with small footprint

  • 9000-hour lamp lifetime

  • Double security against overheating

  • Reactors in Inline and U-shape

  • Connections up to DN1,200

  • Pressure rating Max. 16 bar

  • Flow rates up to 8,000 m³/h

  • Corrosion-resistant GFRP, carbon steel or stainless-steel control cabinets

Applications
  • Swimming pools

  • Advanced Oxidation Processes

  • Cooling tower waters

  • Recirculated aquaculture systems

  • Food and beverage

  • Drinking water

  • Intake water

  • Wellboat, oil and gas

  • Pharmaceutical

  • Horticulture
