Water
softeners

Hard water contains hardness minerals such as calcium and magnesium, which can damage plumbing equipment and installations and human health. Water softeners are specially designed for removing hardness using ion exchange resins, and a digital programmer that controls when regeneration occurs by means of a brine solution

Water softener Industrial Series

Automatic hardness removal systems

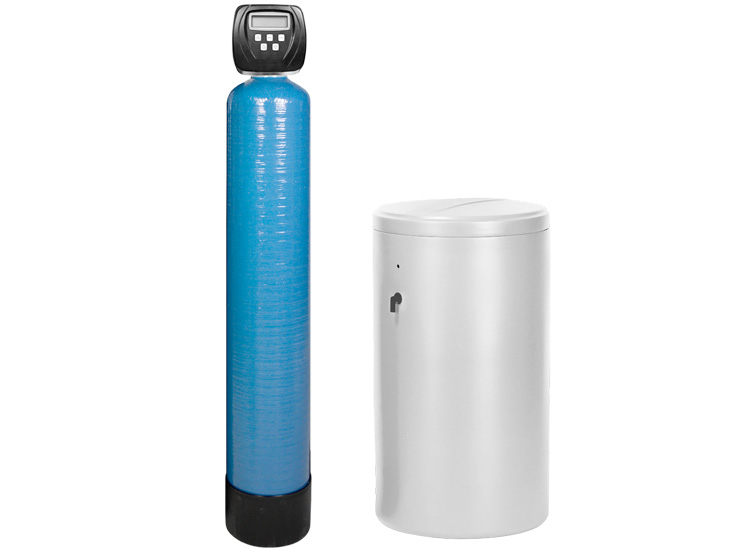

Bibloc co-current


Features

  • Delayed, instantaneous or mixed co-current regeneration

  • Clack meter valves in 1", 1¼”, 1½” and 2" (WSxxCI)

  • GRP vessel reinforced in polyester

  • Service flow rates up to 20 m³/h

  • Salt tank up to 1500 L

  • Working pressure: 2.5 to 6 bar

  • Max. temperature: 43 °C


Bibloc counter-current


Features

  • Delayed, instantaneous or mixed counter-current regeneration

  • 65% salt savings

  • Clack meter valves in 1", 1¼”, 1½” and 2" (WSxxCI)

  • GRP vessel reinforced in polyester

  • Service flow rates up to 20 m³/h

  • Salt tank up to 1500 L

  • Working pressure: 2.5 to 6 bar

  • Max. temperature: 43 °C

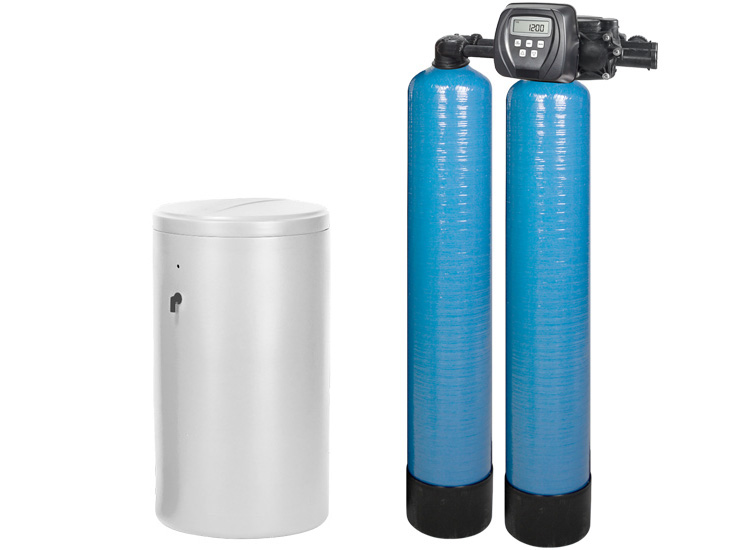

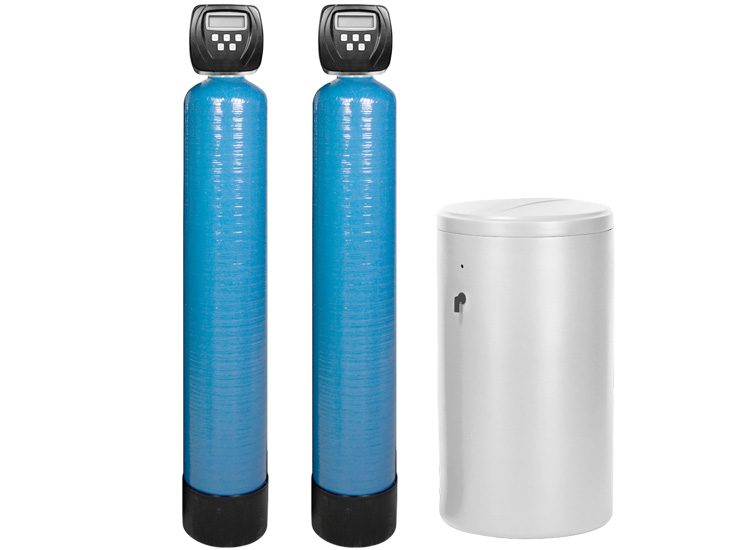

Duplex co-current


Features

  • Permanently softened water, a single bottle in service, the second in the regeneration phase or in stand-by

  • Co-current regeneration

  • Clack meter valve mounted in each vessel in 1", 1¼”, 1½” and 2"

  • GRP vessel reinforced in polyester

  • Service flow rates up to 20 m³/h

  • Salt tank up to 1500 L

  • Working pressure: 2.5 to 6 bar

  • Max. temperature: 43 °C


Duplex counter-current


Features

  • Permanently softened water, a single bottle in service, the second in the regeneration phase or in stand-by

  • Counter-current regeneration: 65% salt savings

  • Clack meter valve mounted in each vessel in 1", 1¼”, 1½” and 2"

  • GRP vessel reinforced in polyester

  • Service flow rates up to 20 m³/h

  • Salt tank up to 1500 L

  • Working pressure: 2.5 to 6 bar

  • Max. temperature: 43 °C


Twin


Features

  • Permanently softened water, a single bottle in service, the second in the regeneration phase or in stand-by

  • Co-current or counter-current regeneration versions

  • One Clack valve for control both bottles  in 1"

  • GRP vessel reinforced in polyester

  • Service flow rates up to 6 m³/h

  • Salt tank up to 500 L

  • Working pressure: 2.5 to 6 bar

  • Max. temperature: 43 °C

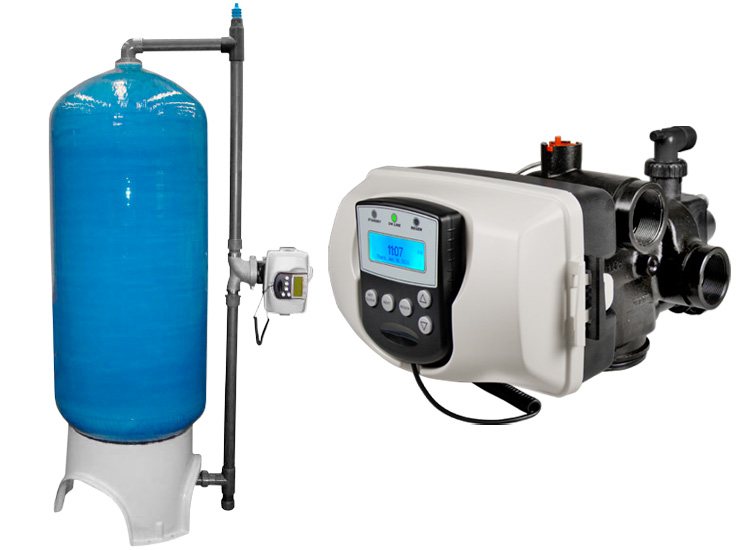

Large flows


Features

  • Simplex, duplex and triplex softeners for water hardness removal by ion exchange resins

  • Co-current regeneration

  • Clack lateral mounted meter valves in 2" and 3"

  • GRP vessel reinforced in polyester

  • Service flow rates up to 56 m³/h

  • Salt tank up to 450 L

  • Working pressure: 2.5 to 6 bar

  • Max. temperature: 43 °C

Applications

  • Water hardness removal
